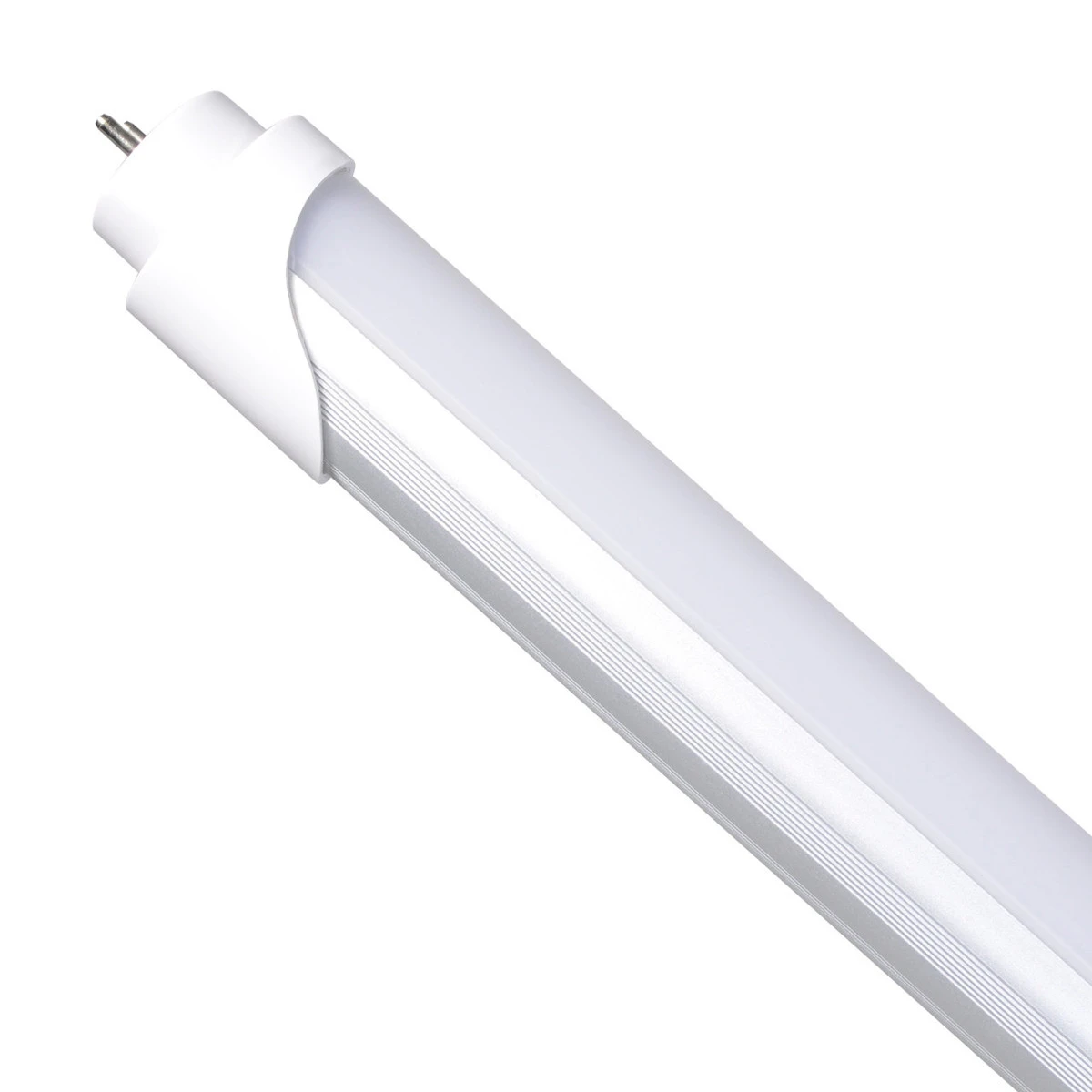

Case Of 25 – 2ft LED T8 PC Tube – Type A+B – 8W – 1040 Lumens – EDIPAI

Replace those flickering fluorescent bulbs with this 2ft. LED T8 Type A+B Linear Tube. This energy-efficient LED tube comes in a case of 25 that makes it a perfect pick for any commercial or residential setting including supermarkets, factories, hotels, conference rooms, schools, and offices. LED Tubes are more energy efficient to save you money, last longer than fluorescent tubes, and contain no hazardous materials!

The linear tubes in this case of 25 are configured for Single or Double-Ended Power, meaning this tube has a live end and a neutral end and can be installed with either shunted or non-shunted sockets. Additionally, they work with or without a ballast.

Specifications:

• Type A+B
• 2ft. Length
• 8W
• 20W Fluorescent Tube Equivalent
• 1040 Lumens
• 80 CRI
• Non-Dimmable
• Single & Double Ended
• Available in 4000K Color Temperature
• 120° Beam Angle
• AC120-277V Input Voltage
• Polycarbonate (PC) Plastic Lens with Aluminum Back
• ETL Listed and DLC Standard 5.1 Listed
  • DLC Standard 5.1 Product ID – S-ZS9Y2T

Product Dimension (of one LED Linear Tube) – 23.12″ L x 1″ W x 1.25″ H

Discover the Benefits of Plug and Play LED Tubes

Plug and Play LED Tubes are here to stay! They make it easy to replace fluorescent tubes and upgrade your space with bright LED light. Plug and play tubes are easy to install. The process is easy as Step 1, 2, and 3.*

1. Turn off power to the light being changed before installation using the switch on the breaker panel.
2. Remove the fluorescent tubes. Remember – Fluorescent tubes contain mercury and should be disposed of properly.
3. Install the LED tubes and turn the power back on.

*Please make sure to read the instruction manual of the LED tubes and fixture the tubes are being installed into as the above instructions may not be 100% correct per the specific tubes or product.

Can you put led tube lights in a fluorescent fixture? Can I replace my fluorescent T8 linear bulbs with LEDs?

Yes! LED Tubes can be installed into a fluorescent fixture. When tubes are Type A + B. Type A or Type B, it is easy to replace those flickering fluorescents. A brief explanation of Type A and B LED linear tubes is below.

Type A LED Linear Tubes are often called “plug and play” tubes. This is because they can simply be installed into the existing fixture.

Type B LED Linear Tubes are often referred to as “ballast bypass.” They work with all fluorescent fixtures including ballast-free fixtures. Type B linear tubes power goes directly to the lamp sockets and no longer through the ballast.

Type A + B can be used with or without a ballast. It is ultimately the buyer’s preference what they want to do. Type A installation uses the LED Tube + Ballast power for more energy consumption compared to Type B installation only uses the raw tube power and is more energy-efficient.

What does ballast bypass mean? How does ballast bypass work?

Ballast bypass means when installing the LED linear tube, the fixture’s ballast will need to be removed first. The power will then go directly to the lamp sockets and no longer through the ballast. The benefits of ballast bypass LED replacement tubes include lights not being shut down by a ballast failure, no more ballast replacements, and savings on the energy bill because energy is no longer drawing from the ballast.

Emergency Drivers: Constant-power emergency drivers with 90-minute run time are available to add on to your LED high bays to increase fire safety and comply with local fire safety codes. Check out our selection of LED emergency drivers.

This LED tube is DLC Standard 5.1 rated and may be eligible for additional utility rebates in certain areas. Check out our Rebate Assistant tool to find if this product qualifies for you!
